Mobile Detailing Water Tank & Pump Setup Guide 2026
Building a mobile detailing water tank and pump system means matching three things correctly: tank capacity, pump flow rate, and power source — get any one wrong and you're either running dry mid-job or blowing a fuse on your rig's electrical system. A 100-gallon tank paired with a 12V diaphragm pump rated 3-5.5 GPM at 40-60 PSI covers most solo operators running 3-4 vehicles a day without a refill stop.
- A mobile detailing water tank and pump system needs a tank (55-300 gallons), a 12V pump (3-5.5 GPM, 40-60 PSI), tubing, fittings, and a power source.
- Tank size should match daily job volume, not truck bed space — oversized tanks waste fuel hauling unused water.
- A 12V diaphragm pump running at 40-60 PSI powers both a foam cannon and a low-pressure rinse without a second pump.
- Detailing World ATL stocks the buckets, wash soap, and foam accessories that connect to the pump output once the tank system is running.
Why this matters
A water tank and pump system is what makes a detailing operation actually mobile — without one, you're dependent on the customer's garden hose and outdoor spigot, which means no-shows on properties without outdoor water access and inconsistent pressure between jobs. In 2026, most mobile detailers building a rig from scratch treat the tank and pump as the first purchase, before the pressure washer or foam cannon, because everything downstream depends on flow rate and tank capacity being sized correctly for the route.
Getting the sizing wrong is the single most common setup mistake. A tank too small forces mid-day refill trips that eat into billable hours; a pump undersized for the pressure washer inlet starves the machine and drops wash pressure exactly when you need it on baked-on brake dust or bug splatter.

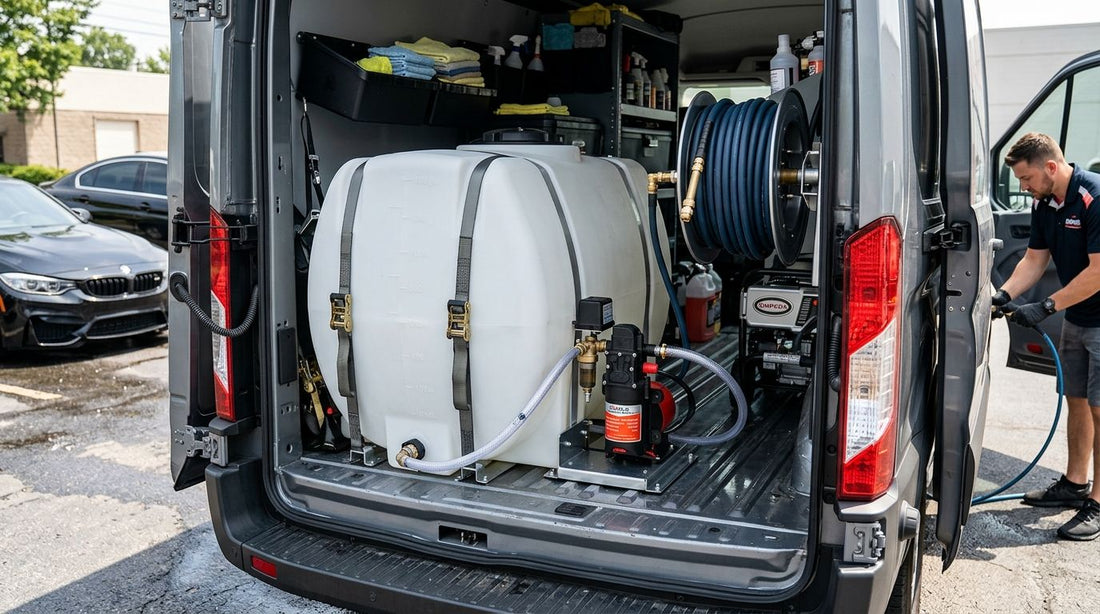

How do you set up a mobile detailing water tank and pump system
Follow this order — skipping steps or reversing them is what causes leaks and pump burnout on a new rig.
- Pick the tank material and shape. Poly (polyethylene) tanks are the standard for mobile rigs — lighter than aluminum, corrosion-proof, and available in slide-in, L-shaped, and rectangular profiles that fit truck beds, vans, or trailers.
- Size the tank to your route, not your vehicle. A 55-gallon tank suits an add-on rig doing 1-2 cars; 100 gallons covers 3-4 jobs; 200+ gallons suits a full-day multi-stop route without a refill.
- Mount the tank low and centered. Weight sits low in a truck bed or trailer to keep the vehicle's center of gravity stable — a full 100-gallon tank weighs roughly 830 pounds of water alone.
- Install the pump at the tank outlet. A 12V diaphragm pump rated 3-5.5 GPM at 40-60 PSI handles both a foam cannon and a rinse-down without needing two separate pumps.
- Run pressure-rated tubing with quick-connect fittings from the pump to your pressure washer inlet or foam gun, using barbed or quick-disconnect couplers rated for the pump's PSI output.
- Wire the pump to a dedicated 12V battery or an isolated circuit off the vehicle's electrical system — never share a circuit with winches or lighting, which causes voltage drop under load.
Comparison: tank and pump combinations by rig type
| Rig type | Tank size | Pump flow | Best for |
|---|---|---|---|
| Add-on / part-time | 55 gal | 3 GPM, 40 PSI | 1-2 jobs per day, short routes |
| Solo full-time | 100 gal | 4-5 GPM, 45-55 PSI | 3-4 jobs per day |
| Multi-van fleet | 200+ gal | 5.5 GPM, 55-60 PSI | Full-day routes, no refill stop |
55-Gallon Tank: Best for Single-Job Add-On Rigs
A 55-gallon tank fits a truck bed toolbox mount or a small trailer corner and holds enough water for one or two full details before refilling. Best for detailers running mobile work as a side operation alongside a shop. The tradeoff is obvious: you'll refill after every couple of jobs, which works fine on a slow day but stalls a packed schedule.
100-Gallon Tank: Best for Solo Detailers Running 3-4 Cars a Day
A 100-gallon tank is the workhorse size for a full-time solo mobile operation, holding roughly a full day's water for wash, rinse, and interior extraction work combined. Best for full-time solo detailers who don't want to plan a mid-route refill. Weight is the tradeoff — a full tank adds over 800 pounds, which matters on a half-ton truck already loaded with a generator and cart.
200+ Gallon Tank: Best for Multi-Van Fleets and Full-Day Routes
A 200-gallon or larger tank, typically mounted on a trailer rather than a truck bed, covers a full day of back-to-back jobs across multiple stops without touching a hydrant. Best for detailing businesses running multiple vans or a single high-volume route. The downside is towing requirements — a trailer-mounted tank this size needs a hitch rated for the added weight and changes how the rig handles in tight residential driveways.
Why tank and pump setups vary
- Daily job count — more cars per day means a bigger tank or a faster refill routine.
- Pump voltage and amperage — a 12V pump pulling more than 15 amps needs its own fused circuit, not a shared accessory line.
- Tank material — poly tanks cost less and resist corrosion; aluminum adds durability but adds weight.
- Mounting method — truck bed slide-in tanks are simpler to install than trailer-integrated systems but limit total capacity.
- Distance from water source between refills — routes in areas without easy hydrant or spigot access need bigger reserve capacity.
- Simultaneous tool draw — running a foam cannon and a pressure washer off the same pump at once demands a higher GPM rating than running either alone.
“Size the tank to your route, not your truck bed — an oversized tank just means hauling unused water all day.”
How many gallons of water does one car wash use in mobile detailing?
A mobile detail typically uses 15-30 gallons of water for a full wash, rinse, and interior extraction on a single vehicle, depending on how much foam soaking and rinsing the job requires. Heavier paint correction or clay bar prep pushes usage toward the higher end since panels get rinsed multiple times between steps.
What size pump do I need to run a foam cannon and pressure washer at the same time?
A 12V pump rated at least 5 GPM at 55-60 PSI keeps a foam cannon and pressure washer fed off the same tank without one starving the other. Anything under 4 GPM will drop pressure noticeably the moment both tools draw water at once, which shows up as weak foam output.
Can I mount a water tank without a trailer?
Yes — a 55 to 100-gallon slide-in poly tank mounts directly in a pickup truck bed or cargo van without a trailer, which is how most solo mobile detailers start their rig in 2026. Trailers only become necessary once tank capacity exceeds what a truck bed can safely carry, typically above 150 gallons.
Once the tank and pump are running, the rest of the build is downstream equipment: a foam gun for garden hose setups, a rolling detailing cart to organize chemicals and towels, and wash soap concentrated enough that a 100-gallon tank covers multiple jobs — that is where Detailing World ATL's detailing supply catalog fits into a mobile rig build.
FAQ
What size water tank do I need for mobile detailing?
A 55-100 gallon tank covers most solo mobile detailers running 1-4 jobs a day in 2026. Multi-van fleets running full-day routes typically use 200+ gallon trailer-mounted tanks.
What PSI pump do I need for a mobile detailing rig?
A 12V pump rated 40-60 PSI handles both a foam cannon and a low-pressure rinse without a second pump. A pressure washer uses its own pump, with the tank pump only feeding water into its inlet.
Can I use a garden hose instead of a tank and pump for mobile detailing?
Yes, but only on properties with accessible outdoor water. A tank and pump system removes that dependency entirely, which is why most full-time mobile operations in 2026 run one regardless of hose access.
How much does water weigh in a mobile detailing tank?
Water weighs about 8.3 pounds per gallon, so a full 100-gallon tank adds roughly 830 pounds to a rig. That weight affects fuel economy and is why tanks mount low and centered.
Do I need a generator to run a 12V water pump?
No. A 12V pump runs off a dedicated battery or an isolated vehicle circuit. A generator is only needed for AC-powered tools like a hot water pressure washer or a shop vacuum.
How often do I need to refill a mobile detailing water tank?
A 100-gallon tank typically covers 3-4 full details before refilling, based on 15-30 gallons used per vehicle. Routes with heavy paint correction work drain the tank faster.
Is a poly or aluminum water tank better for mobile detailing?
Poly is the default choice for mobile rigs because it is lighter and corrosion-proof. Aluminum adds durability but adds weight to a vehicle already carrying 800+ pounds of water.
One last thing
Most new mobile detailers oversize the tank and undersize the pump. A bigger tank feels like more capacity, but a pump that can't hold steady pressure while running a foam cannon and a rinse nozzle at once is what actually slows jobs down. Buy the 100-gallon tank with the 5 GPM pump before you buy the bigger tank with the weaker pump.
